Probeman

January 20, 2023, 09:24:29 AM Last Edit: January 20, 2023, 09:48:40 AM by Probeman

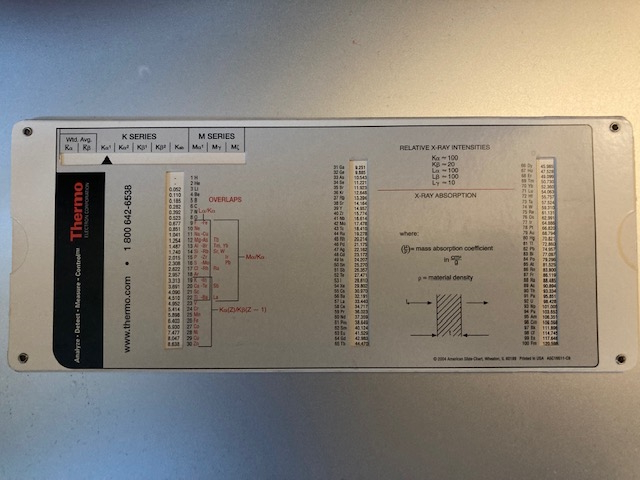

Does any one have one of these Thermo "slide charts"?  This one is a 2004 copyright.



Take a close look at mine when I slide it over to the K absorption edge column:



See anything weird?
The only stupid question is the one not asked!

Probeman

#1
January 21, 2023, 08:57:03 AM Last Edit: January 21, 2023, 10:08:06 AM by Probeman
Quote from: Probeman on January 20, 2023, 09:24:29 AM
Does any one have one of these Thermo "slide charts"?  This one is a 2004 copyright.

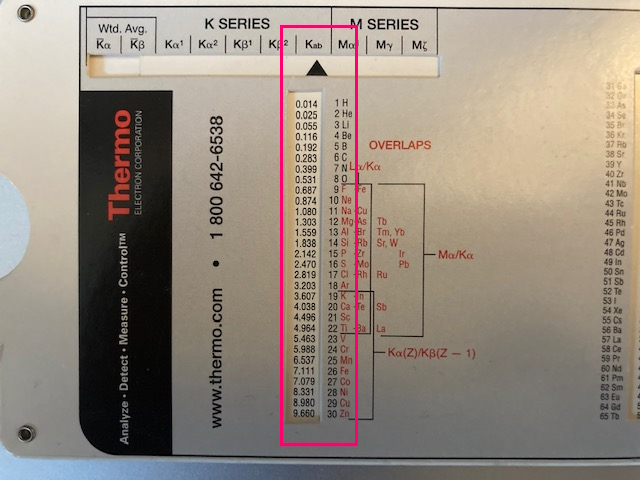

Take a close look at mine when I slide it over to the K absorption edge column:




No one noticed anything odd?  OK take a close look at the edge energies of Fe, Co and Ni...

Yup, that's right. There's a typo for the Co K edge energy.  And it only took me 18 years to notice it!     :-[
The only stupid question is the one not asked!
